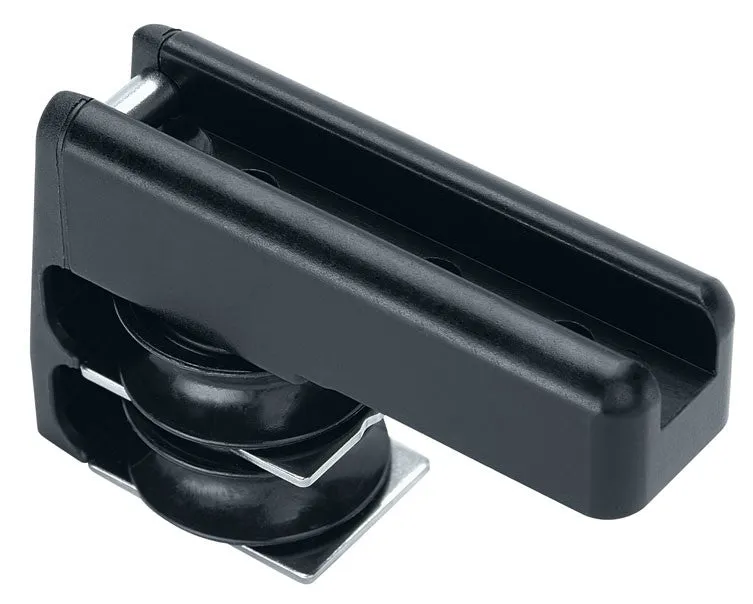

ESP end controls are value-oriented options for the installation of 2:1 to 5:1 systems. Designed for strength and durability, controls feature axle bearing sheaves with sideload ball bearings. Use E3250HB double-sheave end controls for cabintop travellers with cars using 3:1 or 4:1 purchases. Contact Harken® to order special length track with mounting holes for E3250HB end controls. Fits Harken 32mm High Beam traveller track.

Sheave Ø (mm)
57 mm

Length (mm)
155 mm

Width (mm)
57 mm

Height above track (mm)
25 mm

Weight for pair (g)
1547 g

Maximum line Ø (mm)
10 mm

Maximum working load (kg)
318 kg

Breaking load (kg)
635 kg

Purchase
3:1 / 4:1
